Recipe #1, geom_medians() and geom_means()

The Goal

In this first recipe, we’ll look at simple examples of defining a new geom_*() function, geom_medians() and geom_means().

Each geom_*() function (layer) is defined by three major elements: a Geom, a Stat, and a position. The simplest among these to create is a new Stat, so the ‘Easy recipes’ start with these. And while simple, Stats are also powerful because they allow you compute to be integrated into your plotting pipeline — that you would otherwise might need to do ‘manually’ before plotting.

Along with writing the geom_\*() function, we’ll write a stat_*() function, which is pretty typical for seasoned plotnine developers when writing Stats. It’s okay if you don’t typically write your plots with stat_*() functions – you can use just use the geom_*() functions if you like.

TipNote that in the plotnine extension context, the word ‘layer’ only refers to geom_*(), stat_*(), and annotate() functions. These all use the layer() function internally – a function that requires — you guessed it — a Geom, a Stat, and a position!

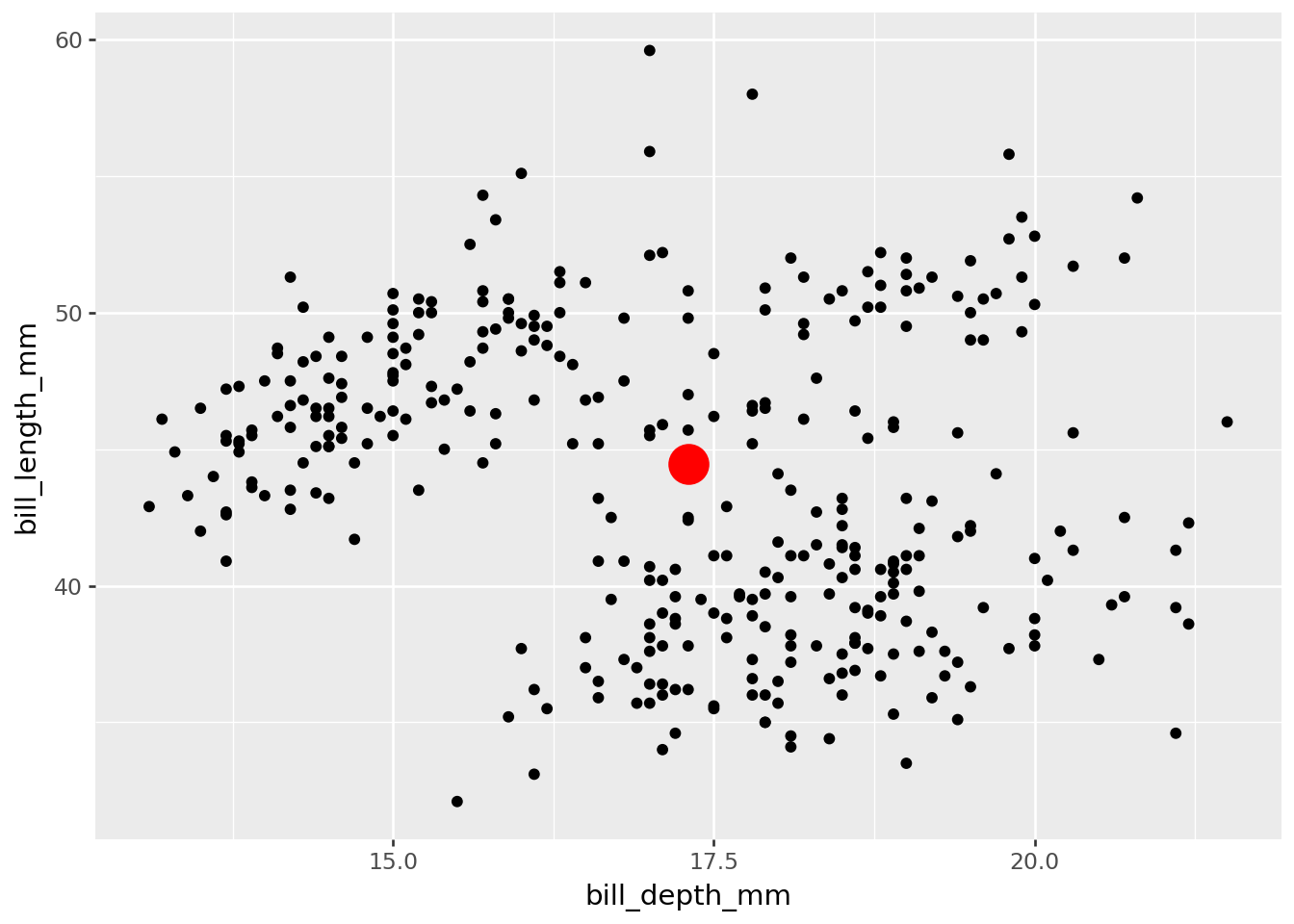

Let’s get started! Our objective in this first ‘recipe’ is to be able to compose the following plot with a new geom_means() function that we will create.

(
    ggplot(data=penguins)
    + aes(x="bill_depth_mm", y="bill_length_mm")
    + geom_point()
    + geom_means(size=8, color="red") # new function!
)

In this exercise, we’ll demonstrate how to define the new extension function geom_medians() to add a point at the medians x and y. Then you’ll be prompted to define geom_means() based on what you’ve learned.

Step 00: Loading packages and prepping data

species island bill_length_mm bill_depth_mm flipper_length_mm body_mass_g sex year
0 Adelie Torgersen 39.1 18.7 181.0 3750.0 male 2007
1 Adelie Torgersen 39.5 17.4 186.0 3800.0 female 2007
2 Adelie Torgersen 40.3 18.0 195.0 3250.0 female 2007
3 Adelie Torgersen NaN NaN NaN NaN NaN 2007
4 Adelie Torgersen 36.7 19.3 193.0 3450.0 female 2007

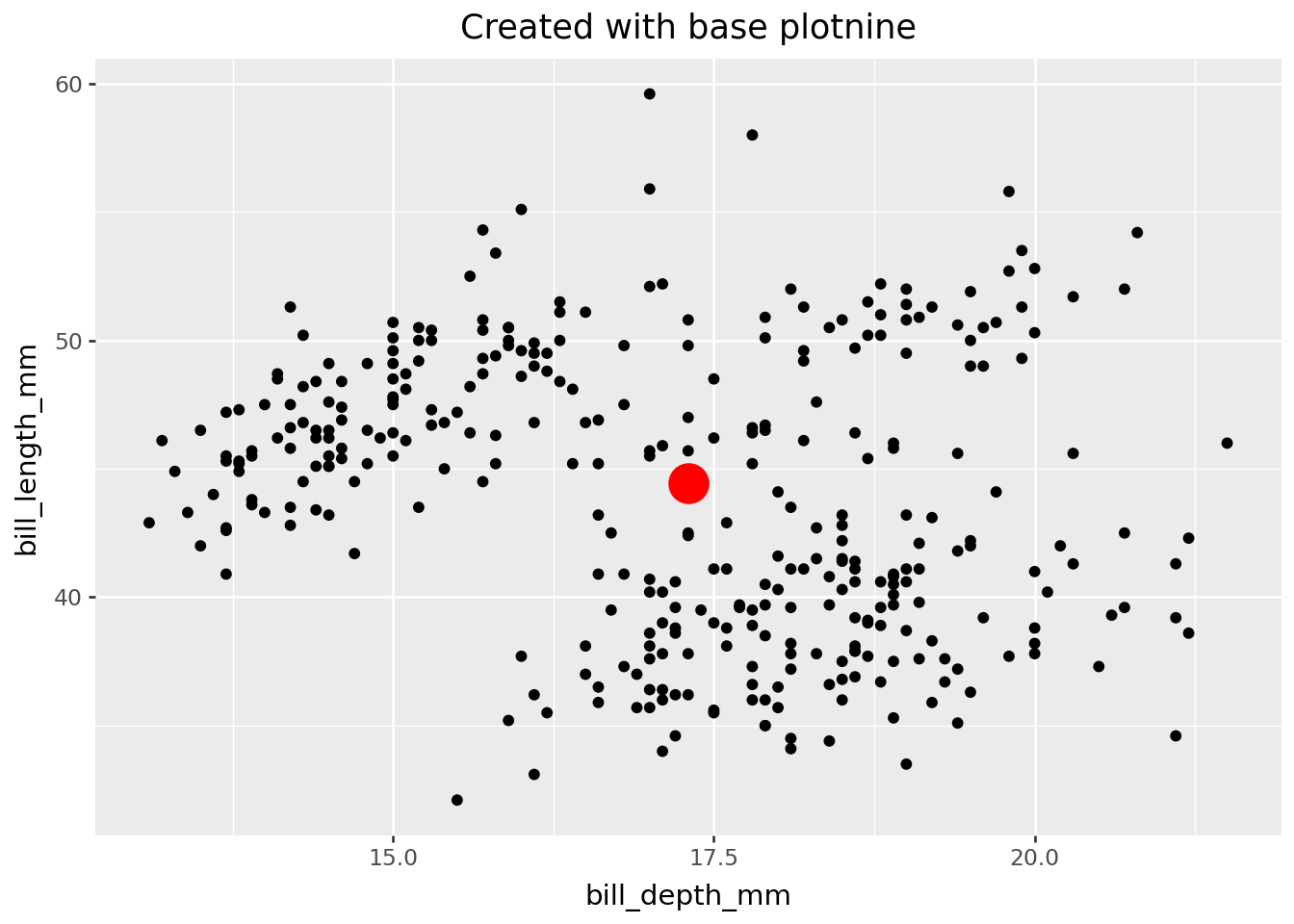

Step 0: use base ggplot2 to get the job done

It’s a good idea to get things done without Stat extension first, just using ‘base’ ggplot2. The computational moves you make here can serve a reference for building our extension function.

Use ggplot.layer_data() to inspect the render-ready data internal in the plot. Your Stat will help prep data to look something like this.

x y PANEL group fill stroke shape alpha size color
0 17.3 44.45 1 -1 None 0.5 o 1 8 red

Step 1: Define compute. Test.

Now you are ready to begin building your extension function. The first step is to define the compute that should be done under-the-hood when your function is used. We’ll define this in a function called compute_group_medians(). The data input will look similar to the plot data. You will also need to include a scales argument, which plotnine uses internally.

Define compute.

NoteYou may have noticed …
  1. … that the compute function can only be used with data with variables x and y. These aesthetic variables names, relevant for building the plot, are generally not found in the raw data inputs for plot.

Test compute.

x y
0 17.3 44.45
NoteYou may have noticed …

… that we prepare the data to have columns with names x and y before testing. Computation will fail if variables x and y are not present given the function’s definition. In a plotting setting, columns are renamed by mapping aesthetics, e.g. aes(x="bill_depth", y="bill_length").

Step 2: Define new Stat. Test.

Next, we use the ggplot2::ggproto function which allows you to define a new Stat object - which will let us do computation under the hood while building our plot.

Define Stat.

NoteYou may have noticed…

  1. … that the naming convention for the ggproto object is written in CamelCase. The new class should also be named the same, i.e. "StatMedians".

  2. … that we inherit from the ‘Stat’ class. In fact, your ggproto object is a subclass – you are inheriting class properties from ggplot2::Stat.

  3. … that the compute_group_medians function is used to define our Stat’s compute_group element. This means that data will be transformed group-wise by our compute definition – i.e. by categories if a categorical variable is mapped.

  4. … that setting required_aes to x and y reflects the compute functions requirements Specifying required_aes in your Stat can improve your user interface. Standard ggplot2 error messages will issue if required aes are not specified, e.g. “stat_medians() requires the following missing aesthetics: x.”

Test Stat.

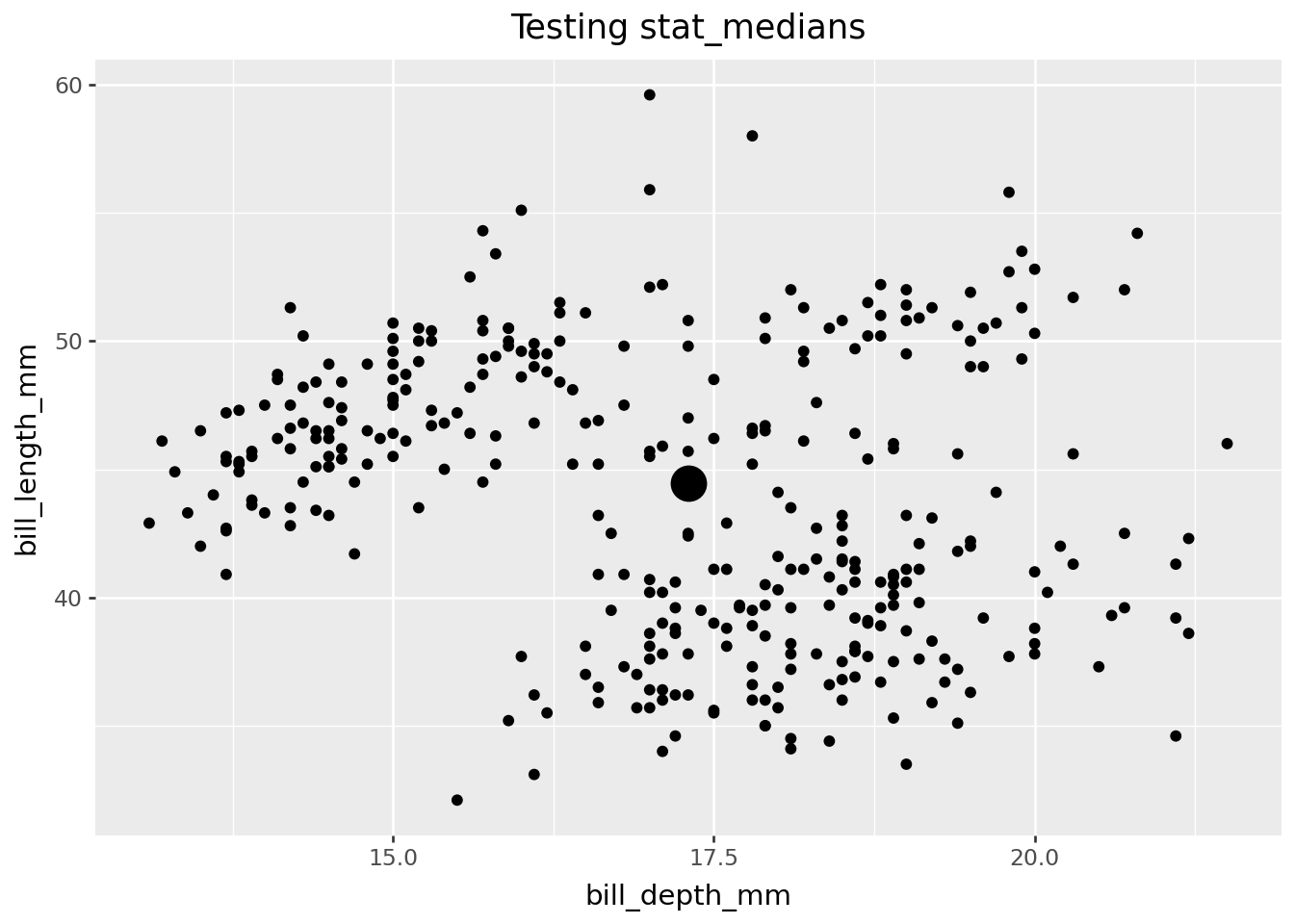

You can test out your Stat using them in ggplot2 geom_*() functions.

NoteYou may have noticed …

… that we don’t use "medians" as the stat argument. But you could! If you prefer, you could write geom_point(stat="medians", size = 7) which will direct to your new stat_medians under the hood.

Test Stat group-wise behavior

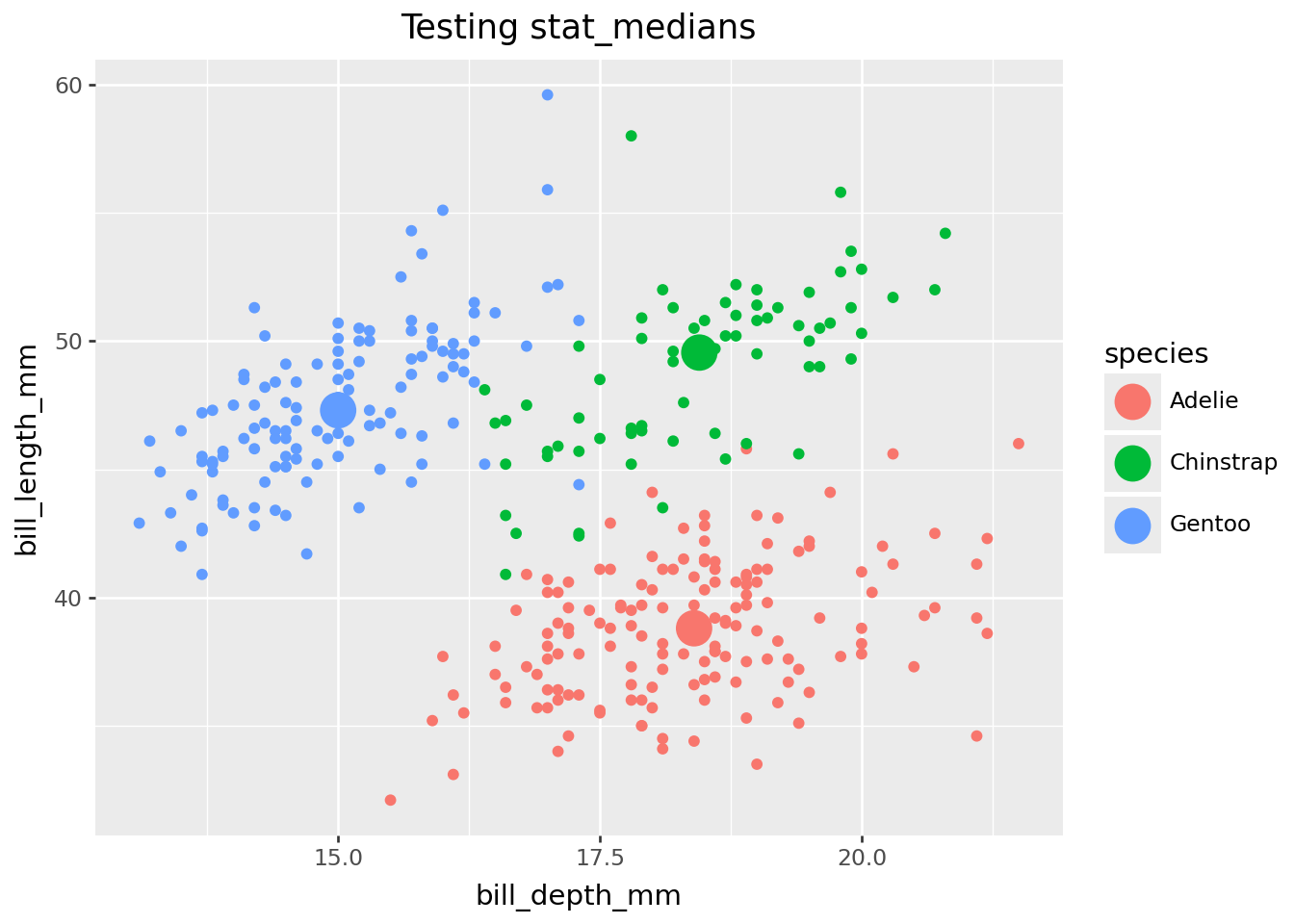

Test group-wise behavior by using a discrete variable with an group-triggering aesthetic like color, fill, or group, or by faceting.

You might be thinking, what we’ve done would already be pretty useful to me. Can I just use my Stat as-is within geom_*() functions?

The short answer is ‘yes’! If you just want to use the Stat yourself locally in a script, there might not be much reason to go on to Step 3, user-facing functions. But if you have a wider audience in mind, i.e. internal to organization or open sourcing in a package, probably a more succinct expression of what functionality you deliver will be useful - i.e. write the user-facing functions.

Instead of using a geom_*() function, you might prefer to use the layer() function in your testing step. Occasionally, you must to go this route; for example, geom_vline() contain no stat argument, but you can use the GeomVline in layer(). If you are teaching this content, using layer() may help you better connect this step with the next, defining the user-facing functions.

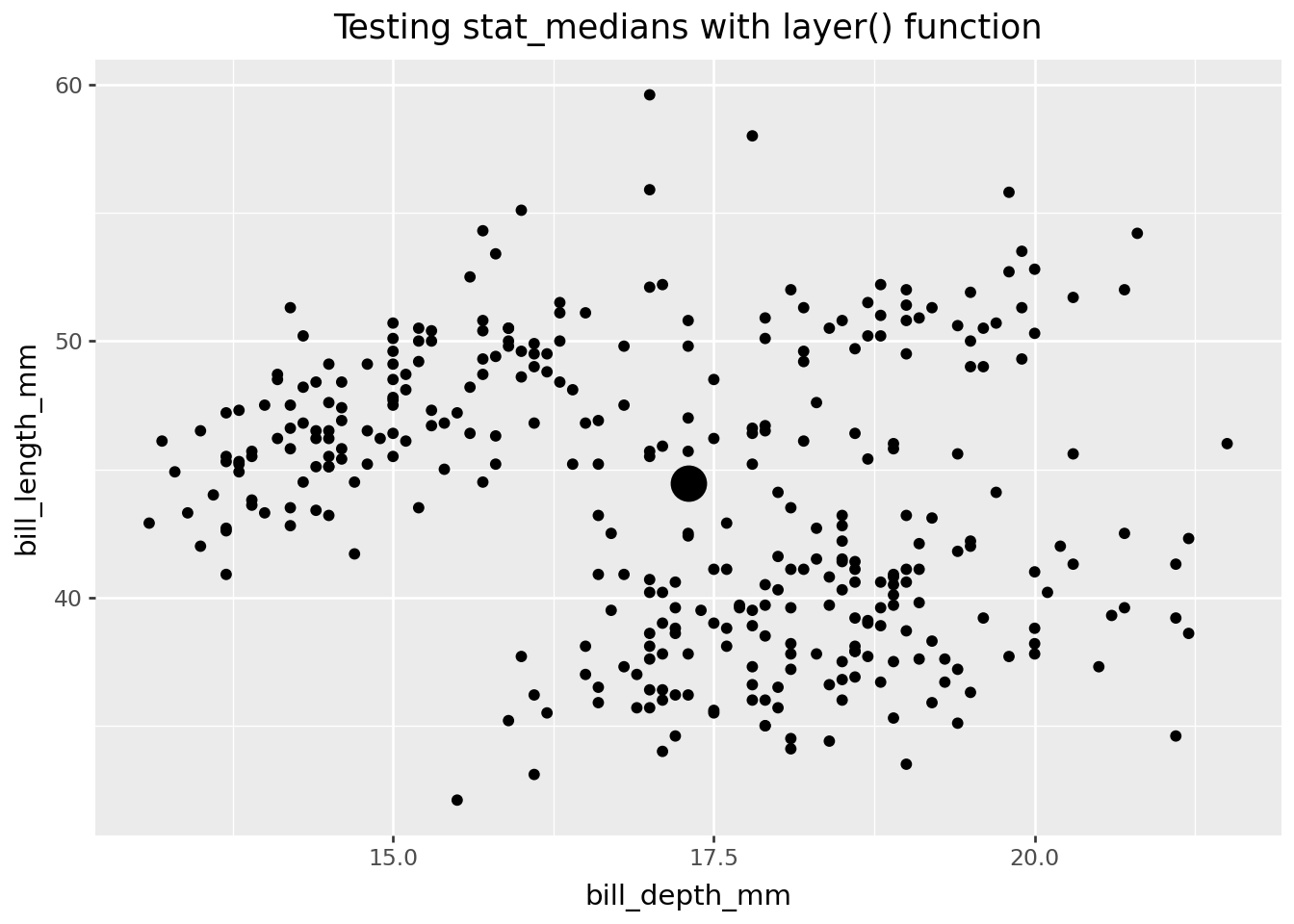

A test of StatMedians using this method follows. You can see it is a little more verbose, as there is no default for the position argument, and setting the size must be handled with a little more care.

Step 3: Define user-facing functions. Test.

Define geom_*() class

‘Most plotnine users are accustomed to adding geoms, not stats, when building up a plot.’ ggplot2: Elegant Graphics for Data Analysis.

Because plotnine users may be more accustomed to using layers that have the geom_ prefix, you might also define a geom_ function with almost the same properties as the stat_. Here we’ll use make_constructor() for convenience.

Test/Enjoy your geom_medians() function!

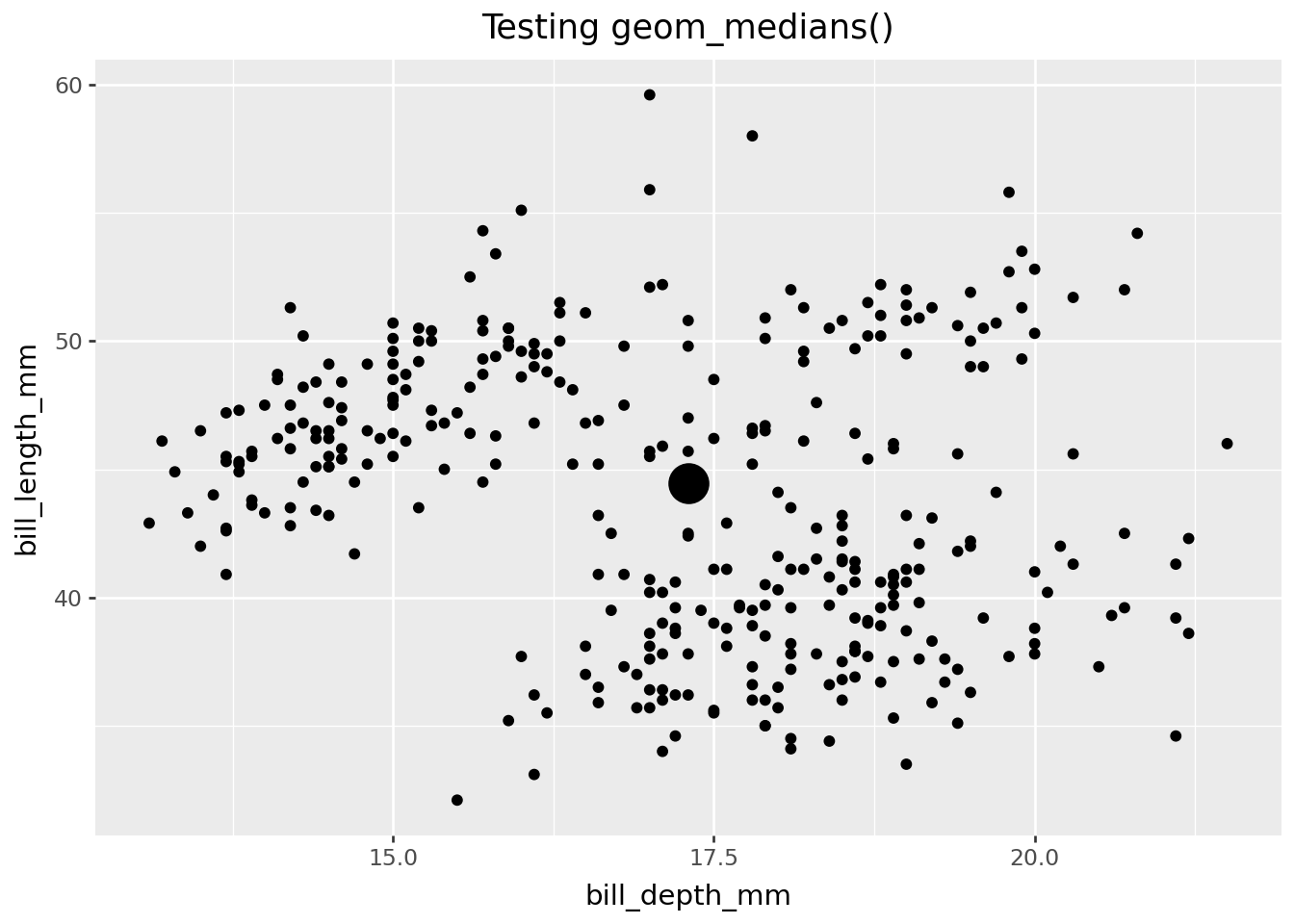

Test geom_medians()

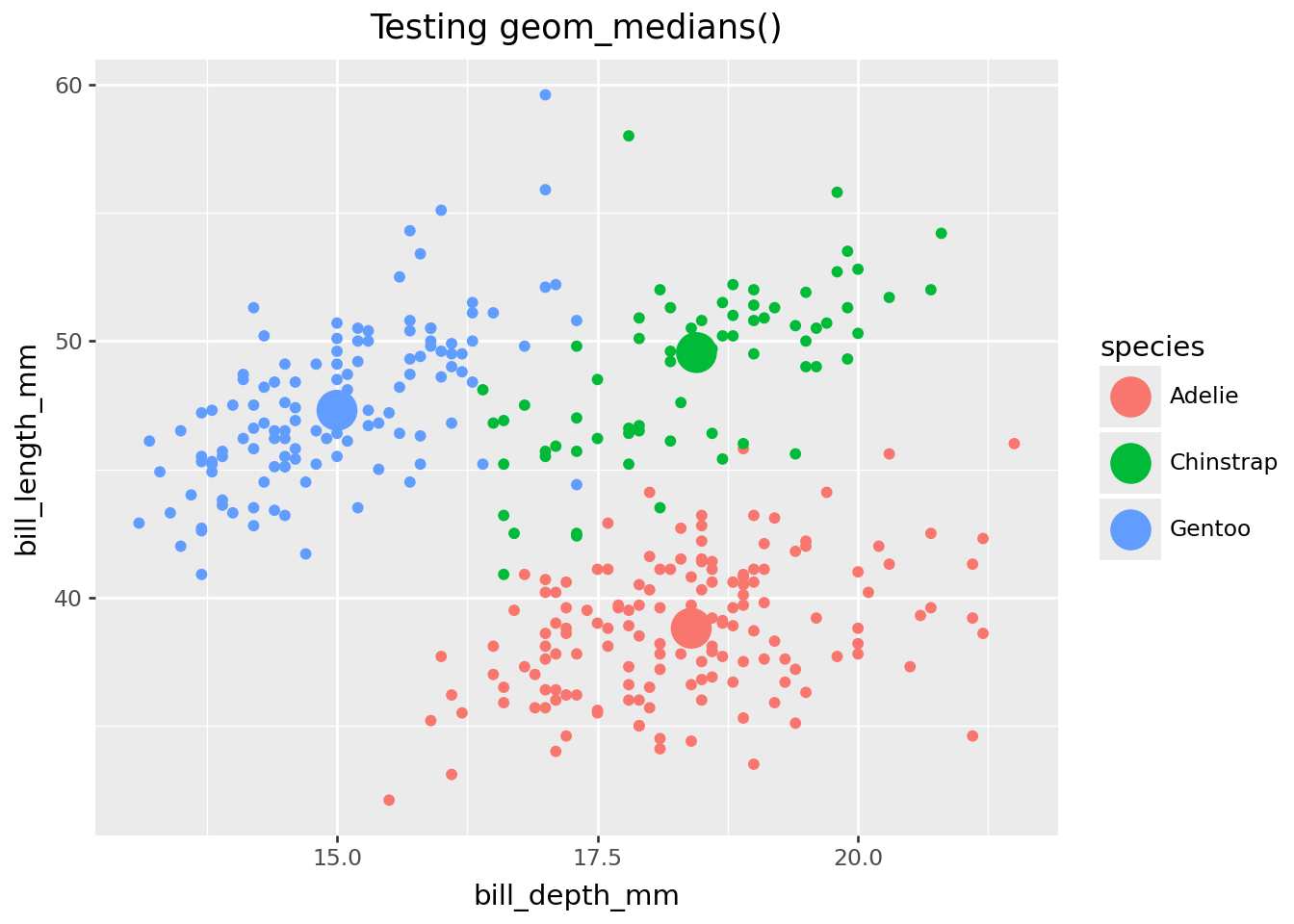

Test group-wise behavior

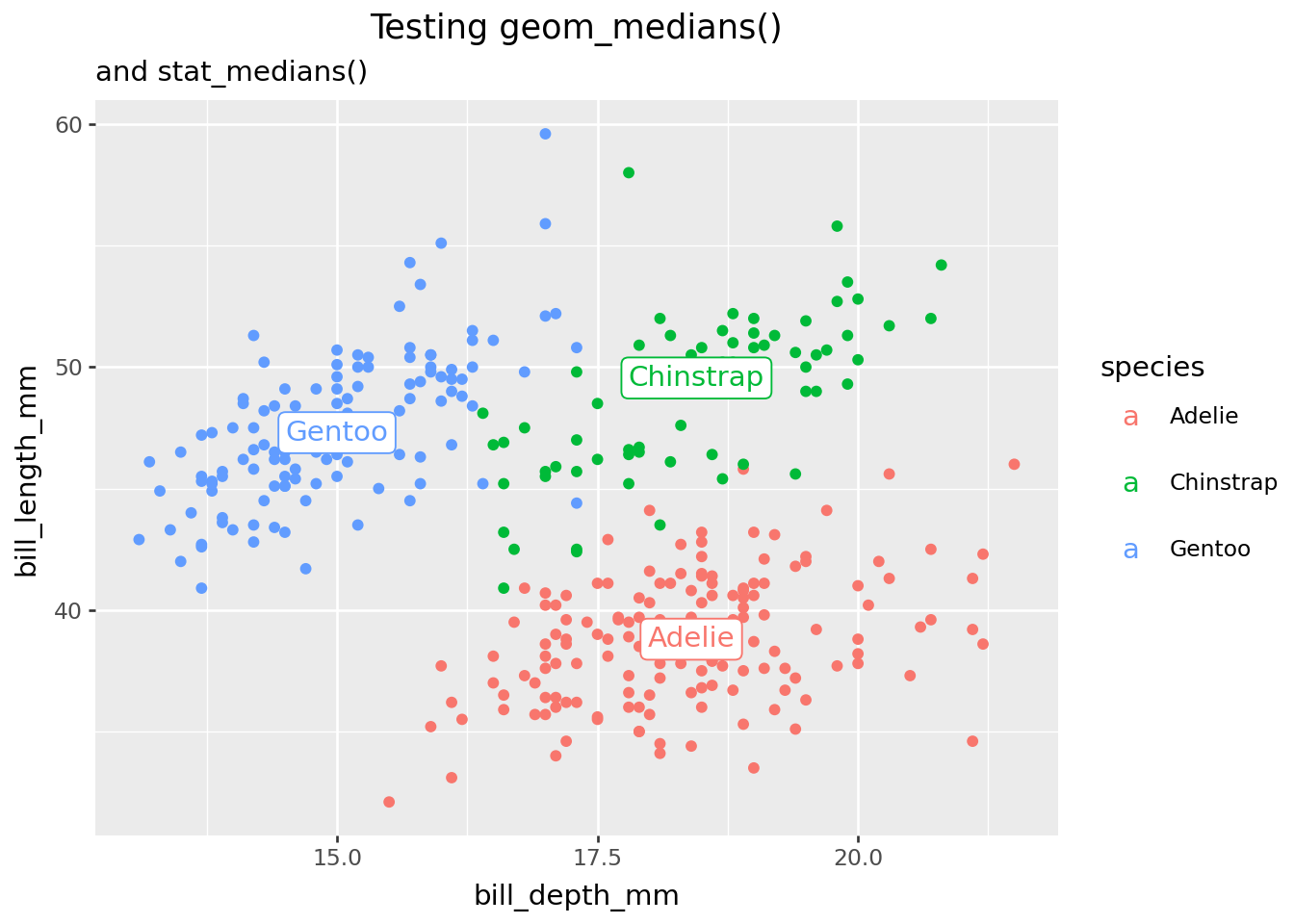

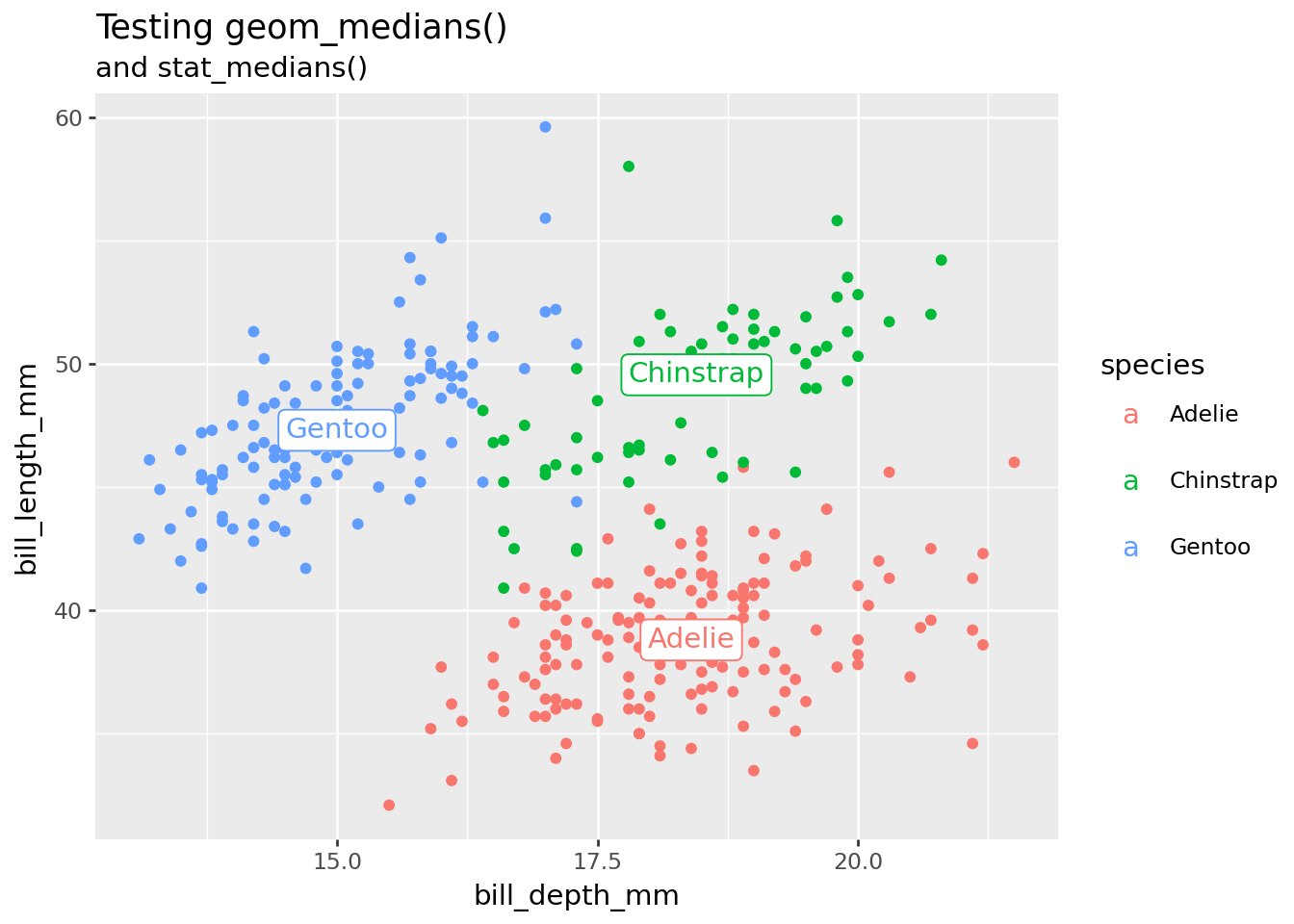

Test stat_*() function with another Geom.

Done! Time for a review.

Here is a quick review of the functions and ggproto objects we’ve covered, dropping tests and discussion.

NoteReview

Your Turn: write geom_means()

Using the geom_medians Recipe #1 as a reference, try to create a geom_means() function that draws a point at the means of x and y. You may also write convenience geom_*() functions.

Step 00: load libraries, data

Step 0: Use base plotnine to get the job done

Step 1: Write compute function. Test.

Step 2: Write Stat.

Step 3: Write Geom.

Next up: Recipe 2 geom_id()

How would you write the function which annotates coordinates (x,y) for data points on a scatterplot? Go to Recipe 2.

Examples follow:
